Power Supply

Operating Voltage

100…264V AC (50/60Hz)

Efficiency

80%

Output

Number of Dimming Channels

2

Model

HKL/D0640412T

Output Voltage

30V DC+1/-2V (one is a 30V DC output with carrier communication, and the other is an auxiliary 30V DC output without communication).

Total output current

640mA

Continuous short-circuit current

<1.3 A

Connection

EIB/KNX

EIB bus connection terminals

Load Output

2 spiral screws to achieve auxiliary power output

Load Input

3 spiral screws are used to achieve AC power input, and L, N, and E are wired separately.

KNX Bus Operation and Display

Key

Reset restart Key

Key and Red LED

After pressing the reset and restart Key, the red LED will light up and the bus voltage will be disconnected. After 20 seconds, the power module will reset and work normally.

(Note: the voltage of the auxiliary power supply is not affected by the reset).

Green LED indicator light

80mA Green LED

320mA Green LED

640mA Green LED

There are three green LEDs in total, which are used to display the load current of 80mA, 320mA, and 640mA. When the load of the power supply reaches a certain value, the corresponding LED light will light up.

OLP/PW

2 colors of LED indicator lights

Green LED Flashing

Indicates that the power module is working properly

Red LED

When the power module experiences overload, the red LED lights up for 2 seconds. After 2 seconds, the power module enters a reset and restarts, and the bus voltage is disconnected. Wait for 25 seconds for the reset before the power module retests. If it is still overloaded, repeat the above process; If there is no overload detected, the bus voltage will return to normal.

Product Protection

Short circuit protection

overload protection

Overheat protection

Protection type level

IP20, EN60 529

Environmental Temperature

Operating temperature

-5 ℃~45 ℃

Storage temperature

-25 ℃~55 ℃

Transportation temperature

-25 ℃~70 ℃

Environmental

condition

Humidity

no condensation

Installation Method

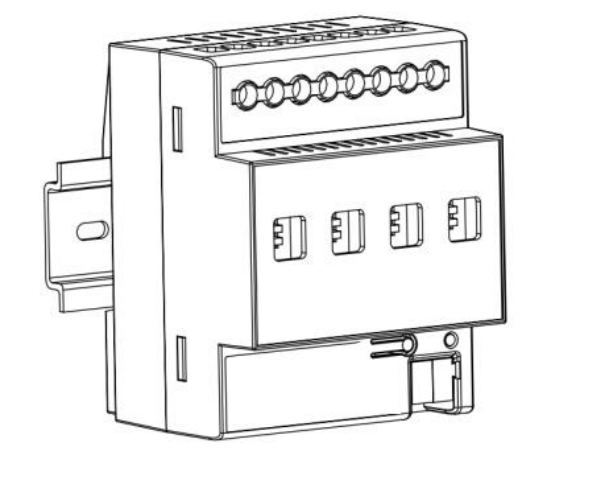

Standard 35mm DIN rail installation

Installed on a 35mm rail, DIN EN 60 715

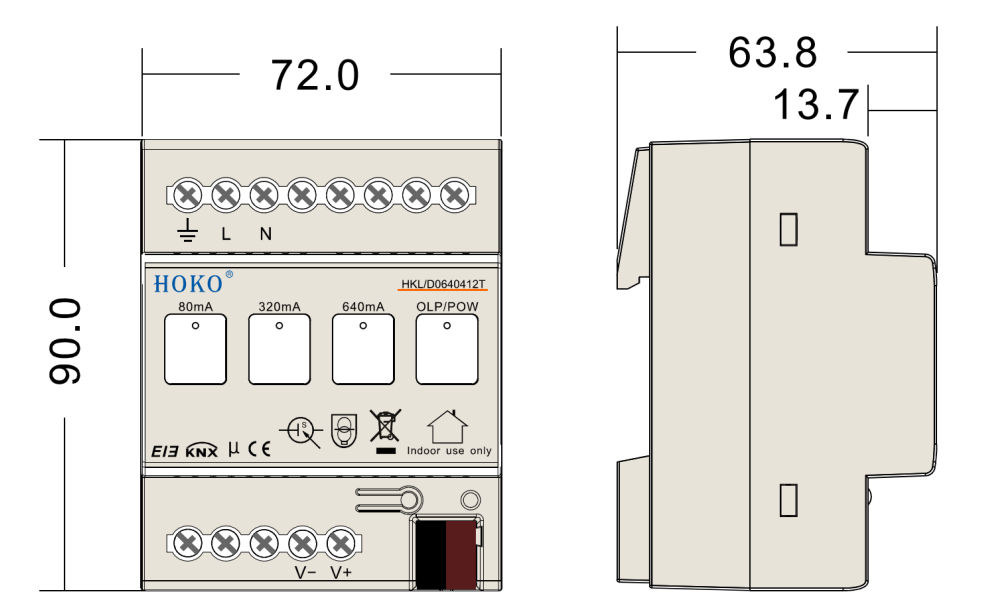

Dimensions

(H*W*D)

90×72×64 mm

CE Standard

Complies with EMC standards and low voltage standards

Weight

0.5KG
